UI documentation¶

This gallery is generated from the production Forge UI Kit presentation components. It provides a reviewable visual record of the implemented issue-context and administration screens without requiring Jira, Kimai, Forge credentials, or network access.

AUTO-GENERATED — DO NOT EDIT MANUALLY: every PNG in generated/ is produced by the UI documentation harness. Run npm run docs:ui and commit the resulting assets instead of editing an image.

Implemented screens¶

Screen	Status	Source
Not configured	Implemented	`src/frontend/issue-context/IssueContextView.tsx`
Personal API connection	Implemented	`src/frontend/issue-context/IssueContextView.tsx`
Manual time entry	Implemented	`src/frontend/issue-context/IssueContextView.tsx`
Admin configuration	Implemented	`src/frontend/admin/AdminView.tsx`
Webhook	Implemented	`src/frontend/admin/AdminView.tsx`

Jira issue context¶

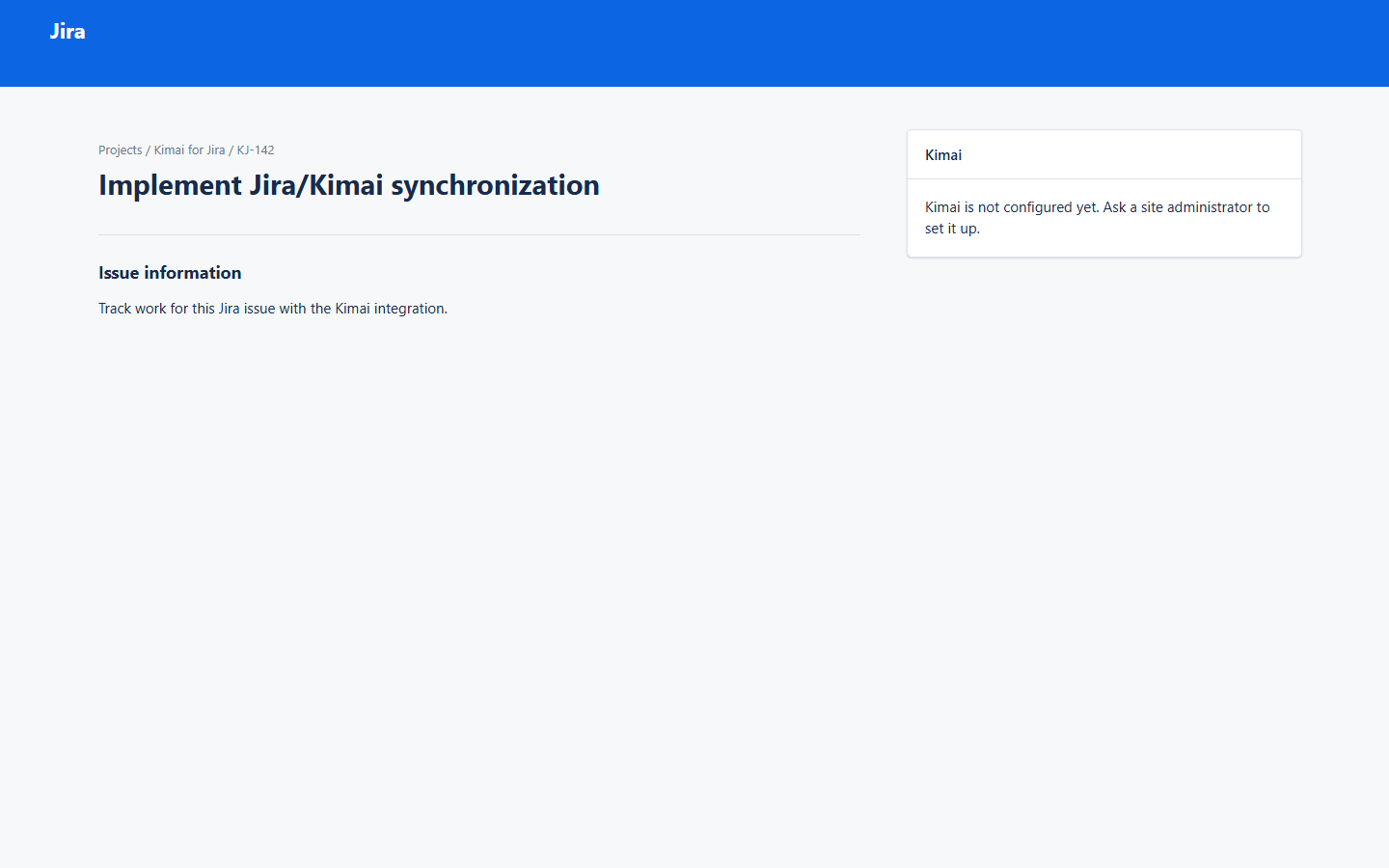

Kimai not configured

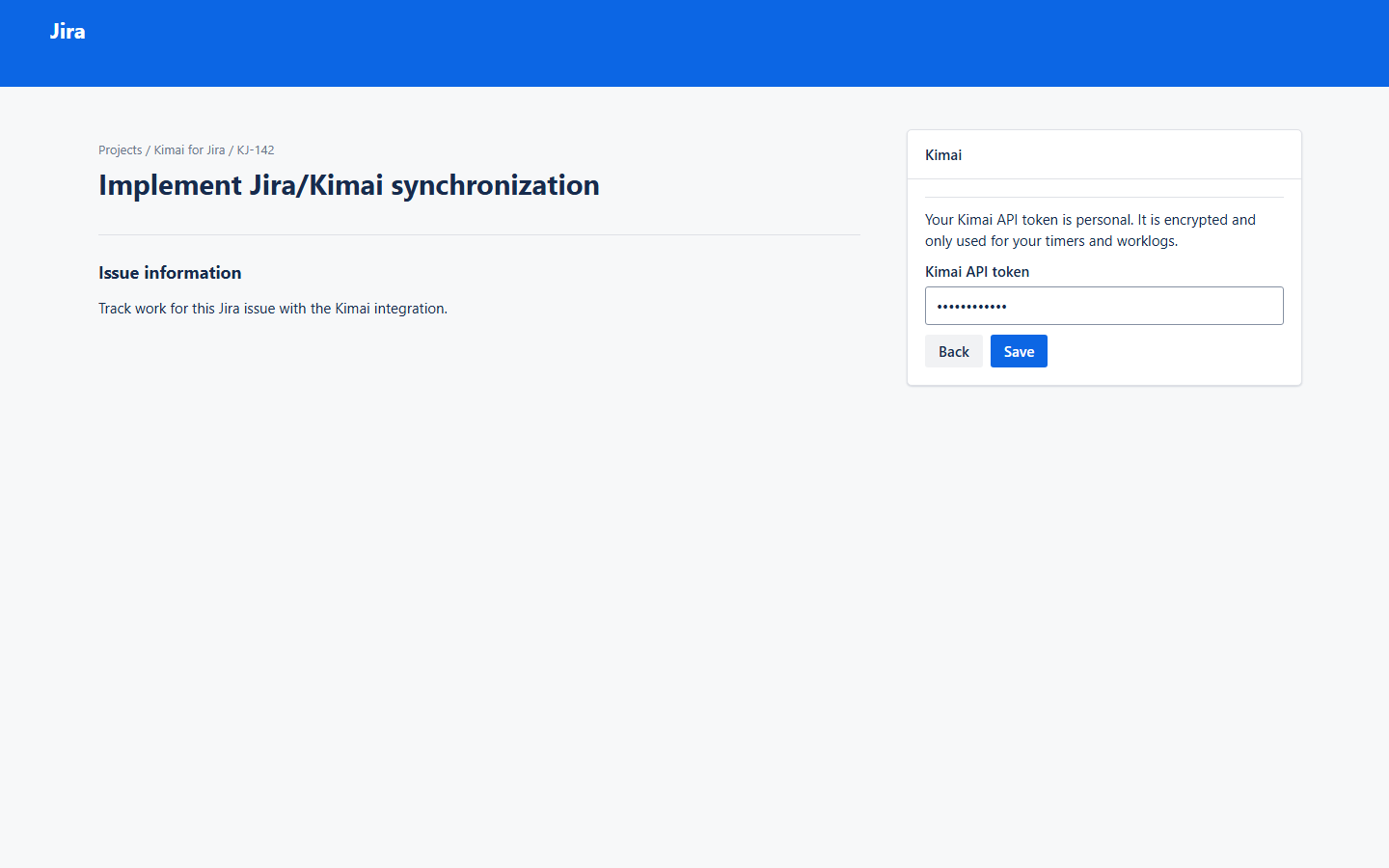

Personal Kimai API connection

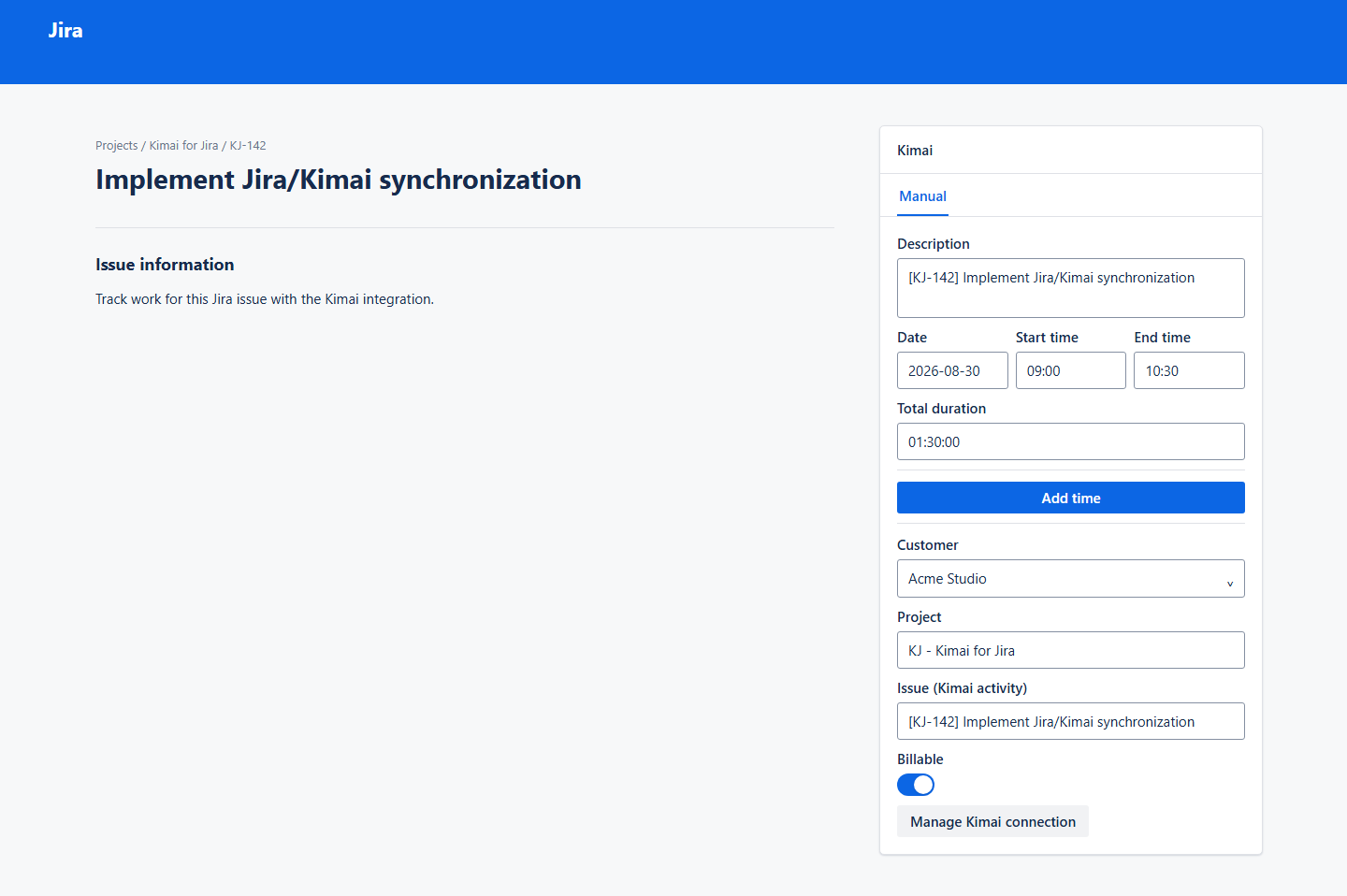

Manual time entry

Jira administration¶

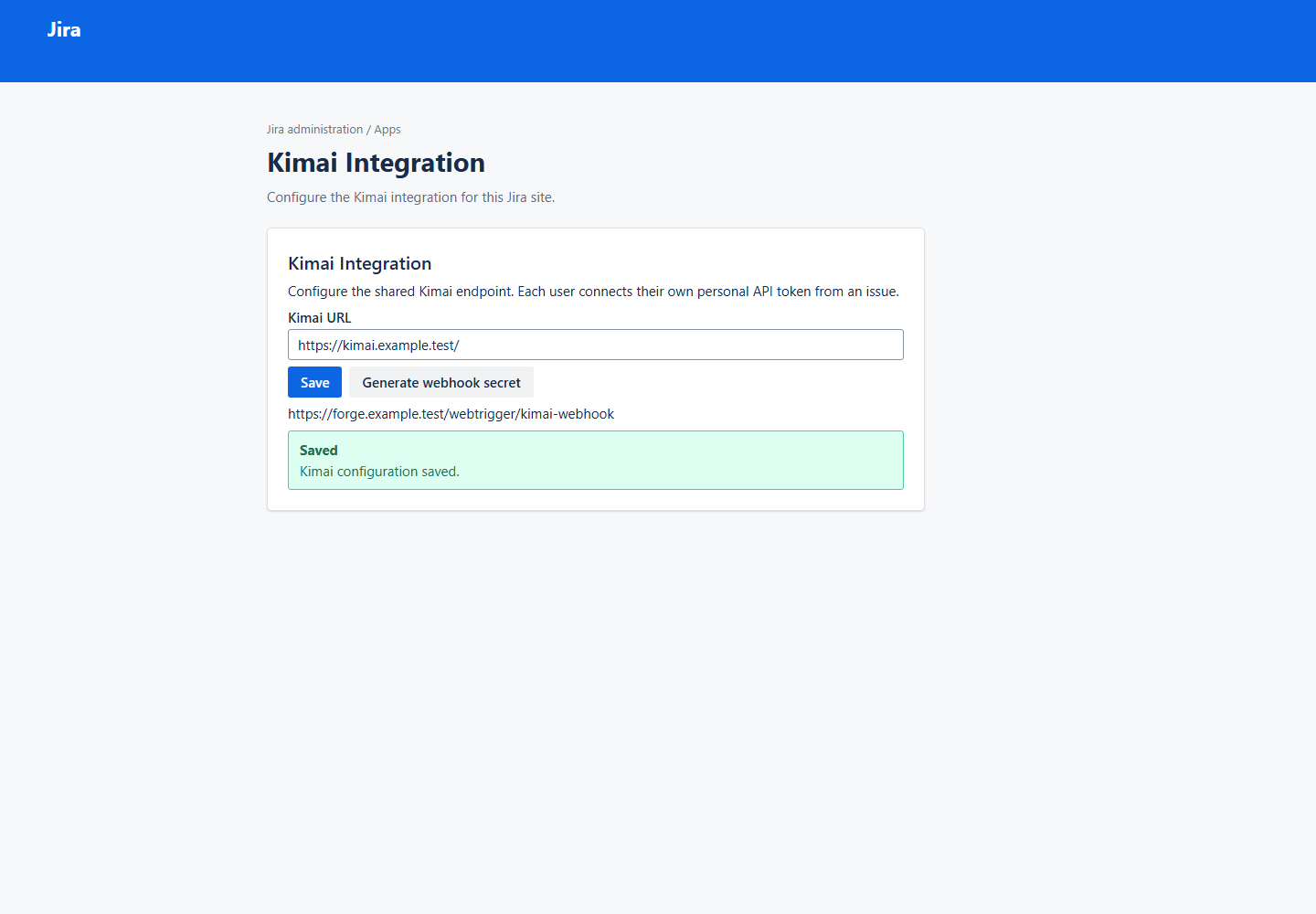

Admin configuration

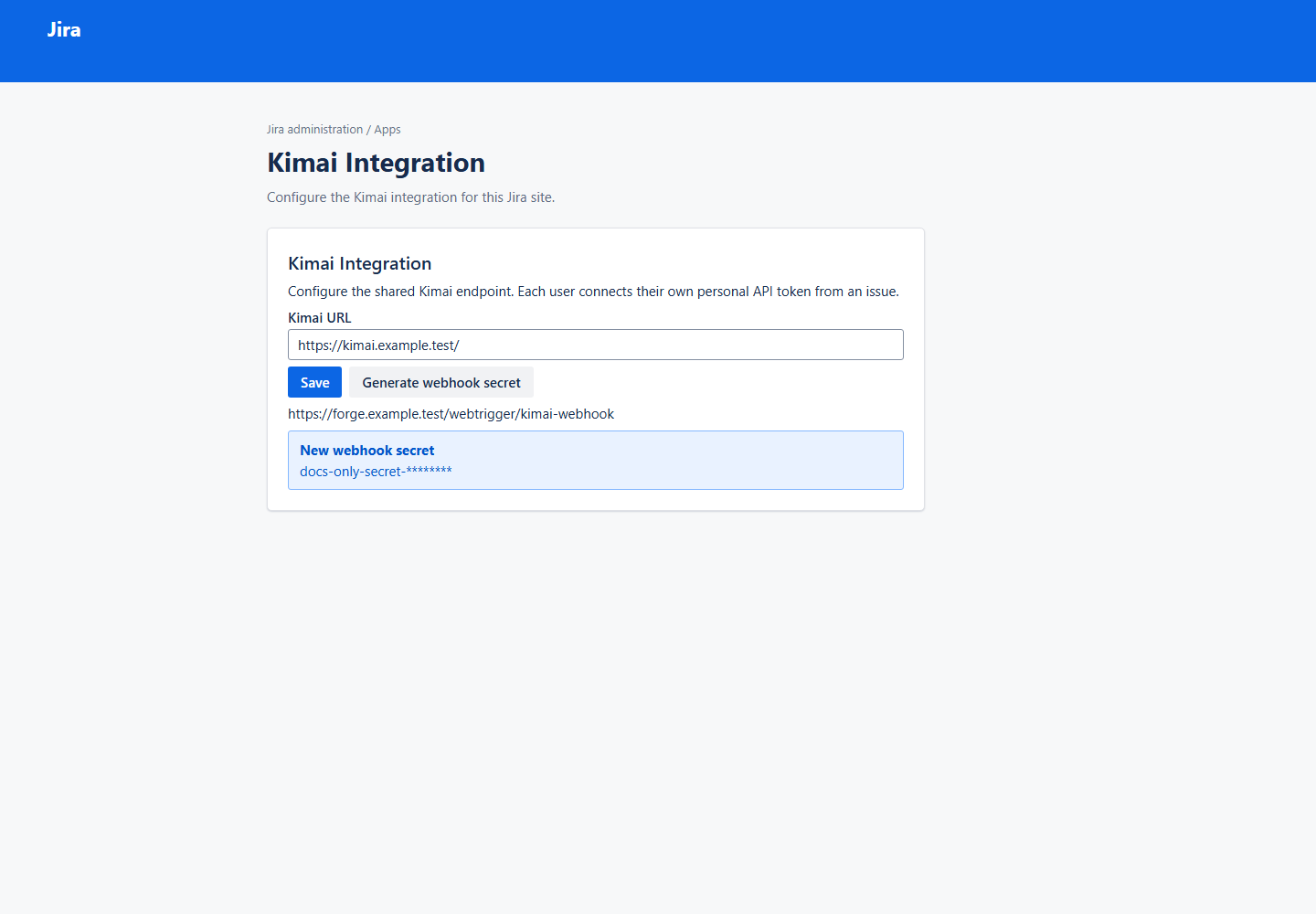

Webhook configuration

How it stays synchronized¶

IssueContextView and AdminView are the production UI Kit component trees. Their Forge entry points retain bridge calls, state management, and resolver interactions. The documentation harness passes deterministic fixture props to those same views, captures the Forge reconciler document, and renders it in an original, local Jira-style shell before Playwright captures a PNG. The shell and generic UI Kit adapter supply context only; they never reproduce individual application screens.

Administrators never enter a Kimai API token. Instead, a user opens Manage Kimai connection in the issue panel and saves their personal token. The resolver validates it with Kimai's /api/users/me, stores it under that Jira account in Forge Secret Store, and records the returned Kimai user ID for timer and Jira-worklog synchronization. The raw token is never returned to the UI.

Fixtures live in scripts/ui-docs/fixtures.tsx. They use fictional values, fixed elapsed times, no live requests, fixed viewports, a device scale factor of one, and disabled animations. Browser screenshots are PNG source-of-truth because browser-rendered React cannot be exported as a faithful semantic SVG. Screen flows use Mermaid instead.

Regeneration and CI¶

npm run docs:ui
npm run docs:ui:check

docs:ui replaces the generated PNGs and their manifest.json. docs:ui:check recreates the platform-independent manifest from the production Forge view trees and relevant source files. It fails when a frontend layout, fixture, or documentation renderer change makes committed assets stale, without comparing platform-specific browser PNG bytes. GitHub Actions runs that check after the normal tests.
